Descripció del producte

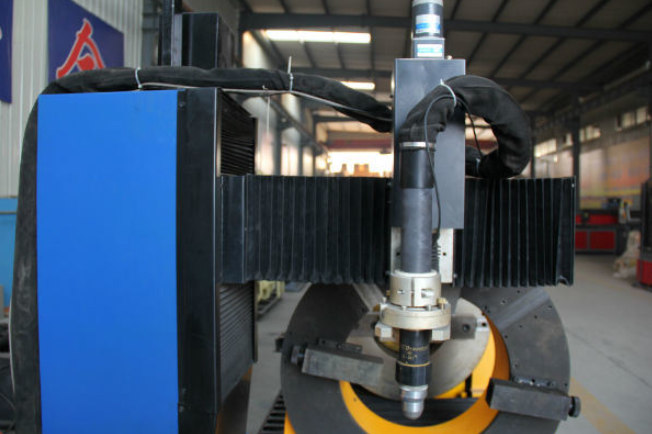

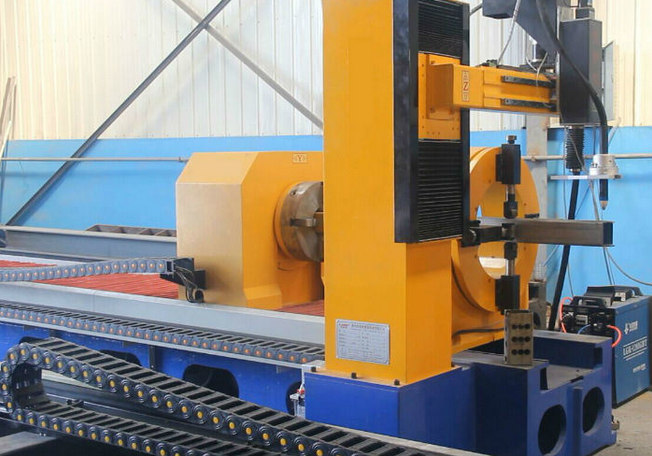

Metal MachinerySquare tube plasma cutting machine/plasma cutter KR-XF4

Breu introducció

KR-XY4 Simplify square tube cutting machine,special designed for cutting small diameter square tube,rectangular tubes and round pipes,can cut off, open holes, slant cut...etc to finish simple cutting process,can not bevel.

Widely used in agricultural machinery, elevator industry,steel construction, fitness equipment,light pole fabrication, mechanical engineering industries,etc.

Support 3-D Lap Joint of Pipe Truss,configurated with ( IPC ) Taiwan Advantech industrial personal computer.

Technique Data

ModelKR-XF4  Square tube CNC cutting machine


Cutting shapesSquare,round pipe,rectangular
Round pipe cutting diameter range50- 300mm
Square tube diameter range50-200mm
Tube cutting thicknessMax. 10mm
Tube cutting length6m
Mètode de tallPlasma
Velocitat de tall del plasma10-2000mm/min
Eix en moviment10-6000mm/min
Precisió de tall±0.5mm
Plasma anti-collision system
Mida de la màquina7*1.8*1.5m
Pes de la màquina1000kg





Main components

Plasma power source : hypertherm 85a
Drive motor: Japan AC Servo motor
CNC Controler : ( IPC ) Taiwan Advantech industrial personal computer
Software system and software: KASRY pipe apply software
Condició de treball
Pressió de treball de gas comprimitPer sobre de 0,7mpa
Require gas flow of plasma4500L / H
Ambient de treballVentilation ,no concussion
Power wattage15KW
Tipus de gasAire

sistema de control

-Support the development of PIPE application systems in AutoCAD platform.

Using AutoCAD, a key automatic to generate cutting code - G code, only 3s to output one tube, high working efficiency.

-For others,usually 3-4 people finish G code out put/in put, while this machine one people can easy operate it .

- With the powerful graphics capabilities of AutoCAD, integrate pipe cutter software functions to generate standard G-code and connect to the multi-axis KASRY 16.5 pipe cutting system to achieve any interface cut.

- Support a variety of modeling, support tube, arc tube cutting.

Simple modelingThrough the center line, easy to establish a circular tube, arc tube, square tube, rectangular tube, plate, and other components overlap space grid structure.

Arbitrary interface cut Get rid of the traditional model parameter programming, make full use of AutoCAD® solid modeling capabilities, the user can be arbitrarily established solid model, cutting out different interface type.

Support square tube, rectangular tube cutting.

Hierarchical display a variety of trace curve

After AutoCAD generated G code, each tube node, the groove, can automatically 2d expansion or 3d expansion.

Tall de mostres
